亚洲欧美激情一区二区 SKFFBSA 207/ DB参数
| 角接触推力球轴承 for screw drives, cartridge units with flanged housing | |||||||||||
| 主要数据尺寸 | 基本负荷额定值 | 疲劳负荷限值 | 可达到的速度 | 体积 | 型号 | ||||||
| 动态 | 静态 | 预压 | SKF | SNFA | |||||||
| A | B | ||||||||||
| d | D2 | A | C | C0 | Pu | ||||||
| mm | kN | kN | r/min | kg | - | ||||||
 | |||||||||||

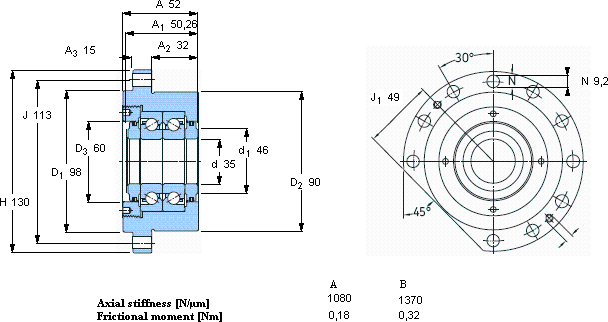

| 35 | 90 | 52 | 36,5 | 98 | 3,65 | 5600 | 2800 | 3,2 | FBSA 207/ DB | BSDU 235 DD | |
SKFAngular contact thrust ball bearings for screw drivesFBSA 207/ DB属于超高精密轴承，它是角接触推力球轴承 for screw drives, cartridge units with flanged housing的Angular contact thrust ball bearings for screw drives，内径：35，外径：90，厚度52，SKFFBSA 207/ DB主要应用于减速装置、等领域。如果您需要购买或者了解更多关于SKFFBSA 207/ DB的信息， 欢迎拨打订购热线：022-27921004
- SKFFBSA 207/ DB近似型号
- SKF 5207 E-2Z 尺寸：35mm × 72 × 27 类型：角接触球轴承 备注：双列
- SKF YAR 207-104-2F/AH 尺寸：31.75mm × 72 × 42.9 类型：Y-轴承 备注：带平头螺钉锁定的
- SKF 2207 ETN9 尺寸：35mm × 72 × 23 类型：自调心球轴承 备注：圆柱孔和圆锥孔
- SKF 2207 E-2RS1KTN9 尺寸：35mm × 72 × 23 类型：自调心球轴承 备注：圆柱孔和圆锥孔
- SKF NU 2207 ECML * 尺寸：35mm × 72 × 23 类型：圆柱滚子轴承 备注：单列
- SKF 7207 BEGBP * 尺寸：35mm × 72 × 17 类型：角接触球轴承 备注：单列
- SKF 7207 BECBP * 尺寸：35mm × 72 × 17 类型：角接触球轴承 备注：单列
- SKF C 2207 KTN9 * 尺寸：35mm × 72 × 23 类型：CARB®圆环滚子轴承 备注：圆柱和圆锥孔
- SKF YAR 212-207-2F/AH 尺寸：61.913mm × 110 × 65.1 类型：Y-轴承 备注：带平头螺钉锁定的
- SKF NJ 207 ECPH * 尺寸：35mm × 72 × 17 类型：圆柱滚子轴承 备注：单列
- SKFFBSA 207/ DB相关型号
- SKFFBSA 204/ DF 尺寸：20mm × 60 × 47 类型：Angular contact thrust ball bearings for screw drives 备注：角接触推力球轴承 for screw drives, cartridge units with flanged housing
- SKFFBSA 205/ QBC 尺寸：25mm × 80 × 82 类型：Angular contact thrust ball bearings for screw drives 备注：角接触推力球轴承 for screw drives, cartridge units with flanged housing
- SKFFBSA 208/ QBC 尺寸：40mm × 124 × 106 类型：Angular contact thrust ball bearings for screw drives 备注：角接触推力球轴承 for screw drives, cartridge units with flanged housing
- SKFFBSA 209/ QBC 尺寸：45mm × 124 × 106 类型：Angular contact thrust ball bearings for screw drives 备注：角接触推力球轴承 for screw drives, cartridge units with flanged housing
- SKFFBSA 206/ QBC 尺寸：30mm × 80 × 84 类型：Angular contact thrust ball bearings for screw drives 备注：角接触推力球轴承 for screw drives, cartridge units with flanged housing
- SKFFBSA 210/ QFC 尺寸：50mm × 124 × 106 类型：Angular contact thrust ball bearings for screw drives 备注：角接触推力球轴承 for screw drives, cartridge units with flanged housing
- SKFFBSA 209/ DB 尺寸：45mm × 124 × 66 类型：Angular contact thrust ball bearings for screw drives 备注：角接触推力球轴承 for screw drives, cartridge units with flanged housing
- SKFFBSA 206 A/ QFC 尺寸：30mm × 88 × 86 类型：Angular contact thrust ball bearings for screw drives 备注：角接触推力球轴承 for screw drives, cartridge units with flanged housing
- SKFFBSA 206/ DB 尺寸：30mm × 80 × 52 类型：Angular contact thrust ball bearings for screw drives 备注：角接触推力球轴承 for screw drives, cartridge units with flanged housing
- SKFFBSA 210 A/ QBC 尺寸：50mm × 128 × 106 类型：Angular contact thrust ball bearings for screw drives 备注：角接触推力球轴承 for screw drives, cartridge units with flanged housing
