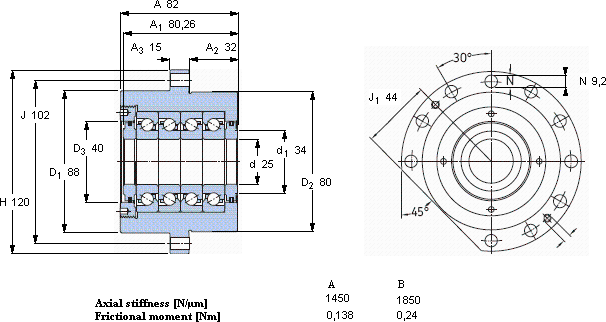

| 角接触推力球轴承 for screw drives, cartridge units with flanged housing | |||||||||||
| 主要数据尺寸 | 基本负荷额定值 | 疲劳负荷限值 | 可达到的速度 | 体积 | 型号 | ||||||
| 动态 | 静态 | 预压 | SKF | SNFA | |||||||
| A | B | ||||||||||
| d | D2 | A | C | C0 | Pu | ||||||
| mm | kN | kN | r/min | kg | - | ||||||
 | |||||||||||
| 25 | 80 | 82 | 36,512 | 104 | 3,86 | 4500 | 2250 | 3,5 | FBSA 205/ QBC | BSQU 225 TDT | |
SKFAngular contact thrust ball bearings for screw drivesFBSA 205/ QBC属于超高精密轴承，它是角接触推力球轴承 for screw drives, cartridge units with flanged housing的Angular contact thrust ball bearings for screw drives，内径：25，外径：80，厚度82，SKFFBSA 205/ QBC主要应用于辊道子、等领域。如果您需要购买或者了解更多关于SKFFBSA 205/ QBC的信息， 欢迎拨打订购热线：022-27921004
- SKFFBSA 205/ QBC近似型号
- SKF RNU 2205 ECP * 尺寸：31.5mm × 52 × 18 类型：圆柱滚子轴承 备注：单列, 无内圈
- SKF NU 2205 ECP 尺寸：25mm × 52 × 18 类型：圆柱滚子轴承 备注：单列
- SKF H 205 尺寸：20mm × 25 × 26 类型：轴承附件 备注：紧定套
- SKF 7205 ACD/HCP4A 尺寸：25mm × 52 × 15 类型：Angular contact ball bearings 备注：角接触球轴承, 精密
- SKF EE 982051/982900 尺寸：520.7mm × 736.6 × 88.9 类型：圆锥滚子轴承 备注：单列
- SKF CR 20554 尺寸：52.4mm × 73.03 × 11.13 类型：径向轴密封件 备注：径向轴密封件
- SKF YAR 205-100-2FW/VA201 尺寸：25.4mm × 52 × 34.1 类型：Y-轴承 备注：用于高温
- SKF 22205/20 E * 尺寸：20mm × 52 × 18 类型：球面滚子轴承 备注：圆柱和圆锥孔
- SKF JM 205149/110/Q 尺寸：50mm × 90 × 28 类型：圆锥滚子轴承 备注：单列
- SKF 22205 E/W64 * 尺寸：25mm × 52 × 18 类型：球面滚子轴承 备注：圆柱型内孔,含Solid Oil
- SKFFBSA 205/ QBC相关型号
- SKFFBSA 210/ QBC 尺寸：50mm × 124 × 106 类型：Angular contact thrust ball bearings for screw drives 备注：角接触推力球轴承 for screw drives, cartridge units with flanged housing
- SKFFBSA 208/ QBC 尺寸：40mm × 124 × 106 类型：Angular contact thrust ball bearings for screw drives 备注：角接触推力球轴承 for screw drives, cartridge units with flanged housing
- SKFFBSA 208/ QFC 尺寸：40mm × 124 × 106 类型：Angular contact thrust ball bearings for screw drives 备注：角接触推力球轴承 for screw drives, cartridge units with flanged housing
- SKFFBSA 204/ DB 尺寸：20mm × 60 × 47 类型：Angular contact thrust ball bearings for screw drives 备注：角接触推力球轴承 for screw drives, cartridge units with flanged housing
- SKFFBSA 209/ DF 尺寸：45mm × 124 × 66 类型：Angular contact thrust ball bearings for screw drives 备注：角接触推力球轴承 for screw drives, cartridge units with flanged housing
- SKFFBSA 209/ QBC 尺寸：45mm × 124 × 106 类型：Angular contact thrust ball bearings for screw drives 备注：角接触推力球轴承 for screw drives, cartridge units with flanged housing
- SKFFBSA 204/ QFC 尺寸：20mm × 60 × 77 类型：Angular contact thrust ball bearings for screw drives 备注：角接触推力球轴承 for screw drives, cartridge units with flanged housing
- SKFFBSA 207/ DF 尺寸：35mm × 90 × 52 类型：Angular contact thrust ball bearings for screw drives 备注：角接触推力球轴承 for screw drives, cartridge units with flanged housing
- SKFFBSA 212 A/ QFC 尺寸：60mm × 145 × 114 类型：Angular contact thrust ball bearings for screw drives 备注：角接触推力球轴承 for screw drives, cartridge units with flanged housing
- SKFFBSA 207/ DB 尺寸：35mm × 90 × 52 类型：Angular contact thrust ball bearings for screw drives 备注：角接触推力球轴承 for screw drives, cartridge units with flanged housing
