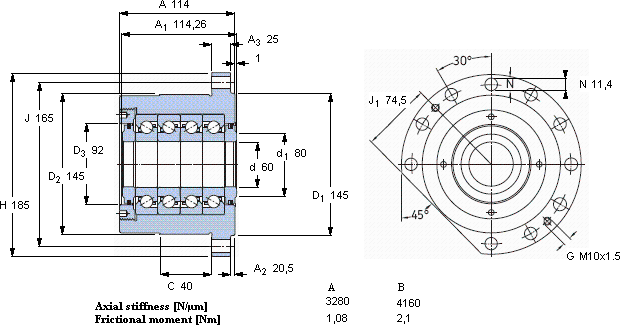

| 角接触推力球轴承 for screw drives, cartridge units with flanged housing | |||||||||||
| 主要数据尺寸 | 基本负荷额定值 | 疲劳负荷限值 | 可达到的速度 | 体积 | 型号 | ||||||
| 动态 | 静态 | 预压 | SKF | SNFA | |||||||
| A | B | ||||||||||
| d | D2 | A | C | C0 | Pu | ||||||
| mm | kN | kN | r/min | kg | - | ||||||
 | |||||||||||
| 60 | 145 | 114 | 113,285 | 432 | 16 | 2500 | 1250 | 12,3 | FBSA 212 A/ QFC | BSQU 260/1 TFT | |
SKFAngular contact thrust ball bearings for screw drivesFBSA 212 A/ QFC属于超高精密轴承，它是角接触推力球轴承 for screw drives, cartridge units with flanged housing的Angular contact thrust ball bearings for screw drives，内径：60，外径：145，厚度114，SKFFBSA 212 A/ QFC主要应用于马达、等领域。如果您需要购买或者了解更多关于SKFFBSA 212 A/ QFC的信息， 欢迎拨打订购热线：022-27921004
- SKFFBSA 212 A/ QFC近似型号
- SKF 212-2ZNR 尺寸：60mm × 110 × 22 类型：深沟球轴承 备注：单列，带装球缺口和止动环槽
- SKF QJ 212 N2MA * 尺寸：60mm × 110 × 22 类型：角接触球轴承 备注：四点接触球轴承
- SKF C 2212 KTN9 + H 312 E * 尺寸：55mm × 110 × 28 类型：CARB®圆环滚子轴承 备注：带紧定套的
- SKF BS2-2212-2CS/VT143 * 尺寸：60mm × 110 × 34 类型：球面滚子轴承 备注：圆柱和圆锥孔
- SKF NU 212 ECM * 尺寸：60mm × 110 × 22 类型：圆柱滚子轴承 备注：单列
- SKF 22212 E * 尺寸：60mm × 110 × 28 类型：球面滚子轴承 备注：圆柱和圆锥孔
- SKF 1212 ETN9/W64 尺寸：60mm × 110 × 22 类型：自调心球轴承 备注：含Solid Oil
- SKF 5212 E-2Z 尺寸：60mm × 110 × 36.5 类型：角接触球轴承 备注：双列
- SKF BSA 212 CG 尺寸：60mm × 110 × 22 类型：Angular contact thrust ball bearings for screw drives 备注：角接触推力球轴承 for screw drives, single direction
- SKF CR 14212 尺寸：36.525mm × 52.37 × 7.95 类型：径向轴密封件 备注：径向轴密封件
- SKFFBSA 212 A/ QFC相关型号
- SKFFBSA 209/ QFC 尺寸：45mm × 124 × 106 类型：Angular contact thrust ball bearings for screw drives 备注：角接触推力球轴承 for screw drives, cartridge units with flanged housing
- SKFFBSA 206/ QFC 尺寸：30mm × 80 × 84 类型：Angular contact thrust ball bearings for screw drives 备注：角接触推力球轴承 for screw drives, cartridge units with flanged housing
- SKFFBSA 208/ QBC 尺寸：40mm × 124 × 106 类型：Angular contact thrust ball bearings for screw drives 备注：角接触推力球轴承 for screw drives, cartridge units with flanged housing
- SKFFBSA 204/ DB 尺寸：20mm × 60 × 47 类型：Angular contact thrust ball bearings for screw drives 备注：角接触推力球轴承 for screw drives, cartridge units with flanged housing
- SKFFBSA 209/ QBC 尺寸：45mm × 124 × 106 类型：Angular contact thrust ball bearings for screw drives 备注：角接触推力球轴承 for screw drives, cartridge units with flanged housing
- SKFFBSA 206/ DF 尺寸：30mm × 80 × 52 类型：Angular contact thrust ball bearings for screw drives 备注：角接触推力球轴承 for screw drives, cartridge units with flanged housing
- SKFFBSA 210/ QFC 尺寸：50mm × 124 × 106 类型：Angular contact thrust ball bearings for screw drives 备注：角接触推力球轴承 for screw drives, cartridge units with flanged housing
- SKFFBSA 212 A/ QBC 尺寸：60mm × 145 × 114 类型：Angular contact thrust ball bearings for screw drives 备注：角接触推力球轴承 for screw drives, cartridge units with flanged housing
- SKFFBSA 207/ DF 尺寸：35mm × 90 × 52 类型：Angular contact thrust ball bearings for screw drives 备注：角接触推力球轴承 for screw drives, cartridge units with flanged housing
- SKFFBSA 207/ DB 尺寸：35mm × 90 × 52 类型：Angular contact thrust ball bearings for screw drives 备注：角接触推力球轴承 for screw drives, cartridge units with flanged housing
