亚洲欧美激情一区二区 SKFFBSA 209/ QFC参数

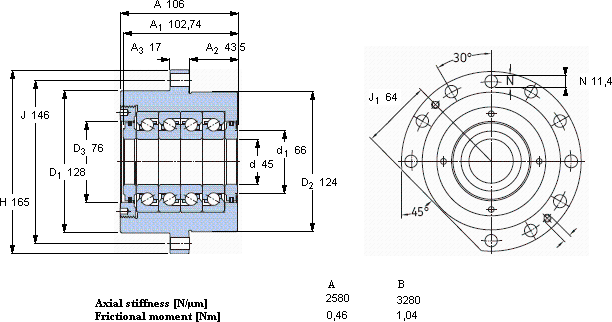

| 角接触推力球轴承 for screw drives, cartridge units with flanged housing | |||||||||||
| 主要数据尺寸 | 基本负荷额定值 | 疲劳负荷限值 | 可达到的速度 | 体积 | 型号 | ||||||
| 动态 | 静态 | 预压 | SKF | SNFA | |||||||
| A | B | ||||||||||
| d | D2 | A | C | C0 | Pu | ||||||
| mm | kN | kN | r/min | kg | - | ||||||
 | |||||||||||
| 45 | 124 | 106 | 73,35 | 268 | 9,8 | 3150 | 1575 | 9,4 | FBSA 209/ QFC | BSQU 245 TFT | |
SKFAngular contact thrust ball bearings for screw drivesFBSA 209/ QFC属于超高精密轴承，它是角接触推力球轴承 for screw drives, cartridge units with flanged housing的Angular contact thrust ball bearings for screw drives，内径：45，外径：124，厚度106，SKFFBSA 209/ QFC主要应用于减速装置、等领域。如果您需要购买或者了解更多关于SKFFBSA 209/ QFC的信息， 欢迎拨打订购热线：022-27921004
- SKFFBSA 209/ QFC近似型号
- SKF 53209 尺寸：45mm × 73 × 24 类型：推力球轴承 备注：单向，带球面轴承座垫圈
- SKF YAR 209-108-2F 尺寸：38.1mm × 85 × 49.2 类型：Y-轴承 备注：带平头螺钉锁定的
- SKF 7209 CD/P4A 尺寸：45mm × 85 × 19 类型：Angular contact ball bearings 备注：角接触球轴承, 精密
- SKF NJ 2209 ECNJ * 尺寸：45mm × 85 × 23 类型：圆柱滚子轴承 备注：单列
- SKF HE 209 尺寸：38.1mm × 45 × 33 类型：轴承附件 备注：用于英制轴的紧定套
- SKF 7209 BECBY 尺寸：45mm × 85 × 19 类型：角接触球轴承 备注：单列
- SKF 7209 CD/HCP4A 尺寸：45mm × 85 × 19 类型：Angular contact ball bearings 备注：角接触球轴承, 精密
- SKF YAR 209-111-2F 尺寸：42.862mm × 85 × 49.2 类型：Y-轴承 备注：带平头螺钉锁定的
- SKF C 2209 KV + AH 309 * 尺寸：40mm × 85 × 23 类型：CARB®圆环滚子轴承 备注：带退卸套的
- SKF 2 x 7209 BECBM * 尺寸：45mm × 85 × 38 类型：角接触球轴承 备注：单列，用于配对安装
- SKFFBSA 209/ QFC相关型号
- SKFFBSA 208/ DF 尺寸：40mm × 124 × 66 类型：Angular contact thrust ball bearings for screw drives 备注：角接触推力球轴承 for screw drives, cartridge units with flanged housing
- SKFFBSA 208 A/ QBC 尺寸：40mm × 128 × 106 类型：Angular contact thrust ball bearings for screw drives 备注：角接触推力球轴承 for screw drives, cartridge units with flanged housing
- SKFFBSA 209/ DF 尺寸：45mm × 124 × 66 类型：Angular contact thrust ball bearings for screw drives 备注：角接触推力球轴承 for screw drives, cartridge units with flanged housing
- SKFFBSA 206/ DF 尺寸：30mm × 80 × 52 类型：Angular contact thrust ball bearings for screw drives 备注：角接触推力球轴承 for screw drives, cartridge units with flanged housing
- SKFFBSA 208 A/ QFC 尺寸：40mm × 128 × 106 类型：Angular contact thrust ball bearings for screw drives 备注：角接触推力球轴承 for screw drives, cartridge units with flanged housing
- SKFFBSA 206/ QBC 尺寸：30mm × 80 × 84 类型：Angular contact thrust ball bearings for screw drives 备注：角接触推力球轴承 for screw drives, cartridge units with flanged housing
- SKFFBSA 209/ DB 尺寸：45mm × 124 × 66 类型：Angular contact thrust ball bearings for screw drives 备注：角接触推力球轴承 for screw drives, cartridge units with flanged housing
- SKFFBSA 205/ DF 尺寸：25mm × 80 × 52 类型：Angular contact thrust ball bearings for screw drives 备注：角接触推力球轴承 for screw drives, cartridge units with flanged housing
- SKFFBSA 207/ DF 尺寸：35mm × 90 × 52 类型：Angular contact thrust ball bearings for screw drives 备注：角接触推力球轴承 for screw drives, cartridge units with flanged housing
- SKFFBSA 212 A/ QFC 尺寸：60mm × 145 × 114 类型：Angular contact thrust ball bearings for screw drives 备注：角接触推力球轴承 for screw drives, cartridge units with flanged housing
