亚洲人成无码一区二区 SKFFBSA 205/ DF参数
| 角接触推力球轴承 for screw drives, cartridge units with flanged housing | |||||||||||
| 主要数据尺寸 | 基本负荷额定值 | 疲劳负荷限值 | 可达到的速度 | 体积 | 型号 | ||||||
| 动态 | 静态 | 预压 | SKF | SNFA | |||||||
| A | B | ||||||||||
| d | D2 | A | C | C0 | Pu | ||||||
| mm | kN | kN | r/min | kg | - | ||||||
 | |||||||||||

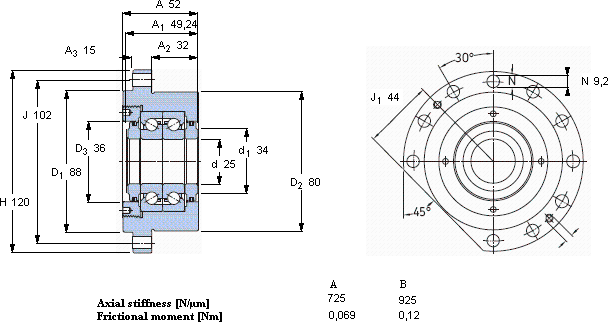

| 25 | 80 | 52 | 22,4 | 52 | 1,93 | 7200 | 3600 | 2,3 | FBSA 205/ DF | BSDU 225 FF | |
SKFAngular contact thrust ball bearings for screw drivesFBSA 205/ DF属于超高精密轴承，它是角接触推力球轴承 for screw drives, cartridge units with flanged housing的Angular contact thrust ball bearings for screw drives，内径：25，外径：80，厚度52，SKFFBSA 205/ DF主要应用于农业、等领域。如果您需要购买或者了解更多关于SKFFBSA 205/ DF的信息， 欢迎拨打订购热线：022-27921004
- SKFFBSA 205/ DF近似型号
- SKF 30205 J2/Q 尺寸：25mm × 52 × 16.25 类型：圆锥滚子轴承 备注：单列
- SKF 51205 V/HR11T1 尺寸：25mm × 47 × 15 类型：工程产品 备注：聚合物球轴承,推力球轴承
- SKF YAR 205-2FW/VA201 尺寸：25mm × 52 × 34.1 类型：Y-轴承 备注：用于高温
- SKF 53205 尺寸：25mm × 47 × 19 类型：推力球轴承 备注：单向，带球面轴承座垫圈
- SKF YEL 205-100-2FCW 尺寸：25.4mm × 52 × 15 类型：Y-轴承 备注：带偏心锁定环的
- SKF PCM 200205100 B 尺寸：200mm × 205 × 100 类型：复合干式滑动轴套 备注：带公制尺寸
- SKF CR 2050557 尺寸：520.7mm × 571.5 × 20.62 类型：径向轴密封件 备注：径向轴密封件
- SKF 32052T189 X/DBC280 尺寸：260mm × 400 × 189 类型：圆锥滚子轴承 备注：单列，背对背配对
- SKF BC2B 320570 尺寸：500mm × 700 × 170 类型：圆柱滚子轴承 备注：双列
- SKF TVN 205 A 尺寸：25mm × 170 × 40 类型：TVN立式轴承座组座 备注：TVN立式轴承座组座
- SKFFBSA 205/ DF相关型号
- SKFFBSA 210/ QBC 尺寸：50mm × 124 × 106 类型：Angular contact thrust ball bearings for screw drives 备注：角接触推力球轴承 for screw drives, cartridge units with flanged housing
- SKFFBSA 208/ DB 尺寸：40mm × 124 × 66 类型：Angular contact thrust ball bearings for screw drives 备注：角接触推力球轴承 for screw drives, cartridge units with flanged housing
- SKFFBSA 206/ QFC 尺寸：30mm × 80 × 84 类型：Angular contact thrust ball bearings for screw drives 备注：角接触推力球轴承 for screw drives, cartridge units with flanged housing
- SKFFBSA 205/ QBC 尺寸：25mm × 80 × 82 类型：Angular contact thrust ball bearings for screw drives 备注：角接触推力球轴承 for screw drives, cartridge units with flanged housing
- SKFFBSA 208/ QFC 尺寸：40mm × 124 × 106 类型：Angular contact thrust ball bearings for screw drives 备注：角接触推力球轴承 for screw drives, cartridge units with flanged housing
- SKFFBSA 212 A/ QBC 尺寸：60mm × 145 × 114 类型：Angular contact thrust ball bearings for screw drives 备注：角接触推力球轴承 for screw drives, cartridge units with flanged housing
- SKFFBSA 206 A/ QFC 尺寸：30mm × 88 × 86 类型：Angular contact thrust ball bearings for screw drives 备注：角接触推力球轴承 for screw drives, cartridge units with flanged housing
- SKFFBSA 204/ QFC 尺寸：20mm × 60 × 77 类型：Angular contact thrust ball bearings for screw drives 备注：角接触推力球轴承 for screw drives, cartridge units with flanged housing
- SKFFBSA 207/ DF 尺寸：35mm × 90 × 52 类型：Angular contact thrust ball bearings for screw drives 备注：角接触推力球轴承 for screw drives, cartridge units with flanged housing
- SKFFBSA 207/ DB 尺寸：35mm × 90 × 52 类型：Angular contact thrust ball bearings for screw drives 备注：角接触推力球轴承 for screw drives, cartridge units with flanged housing
- SKFFBSA 205/ DF推荐型号
- KOYO 6309 尺寸：45mm × 100 × 25 类型：
- FAFNIR 6305-Z 尺寸：25mm × 62 × 17 类型：
- RHP 7232C/DB 尺寸：160mm × 290 × 96 类型：
- GMN 7004AC/DF 尺寸：20mm × 42 × 24 类型：
- GMN 7228C/DT 尺寸：140mm × 250 × 84 类型：
- FLT NUP212 尺寸：60mm × 110 × 22 类型：
- NTN NJ332+HJ332 尺寸：160mm × 340 × 68 类型：
- NTN UCFU309 尺寸：45mm × 57 × 160 类型：
- NTN UKFU210+H2310 尺寸：45mm × 55 × 145 类型：
- SKF 6312-2RS1 尺寸：60mm × 130 × 31 类型：
