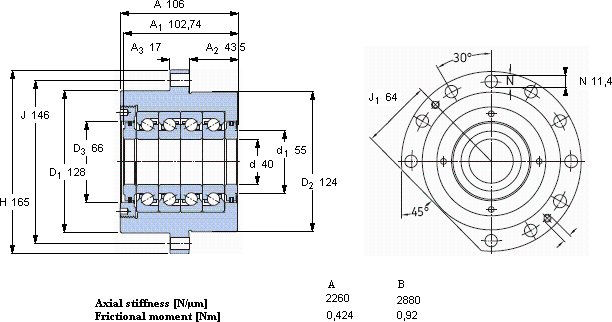

| 角接触推力球轴承 for screw drives, cartridge units with flanged housing | |||||||||||
| 主要数据尺寸 | 基本负荷额定值 | 疲劳负荷限值 | 可达到的速度 | 体积 | 型号 | ||||||
| 动态 | 静态 | 预压 | SKF | SNFA | |||||||
| A | B | ||||||||||
| d | D2 | A | C | C0 | Pu | ||||||
| mm | kN | kN | r/min | kg | - | ||||||
 | |||||||||||
| 40 | 124 | 106 | 69,275 | 224 | 8,3 | 3150 | 1575 | 9,7 | FBSA 208/ QFC | BSQU 240 TFT | |
SKFAngular contact thrust ball bearings for screw drivesFBSA 208/ QFC属于超高精密轴承，它是角接触推力球轴承 for screw drives, cartridge units with flanged housing的Angular contact thrust ball bearings for screw drives，内径：40，外径：124，厚度106，SKFFBSA 208/ QFC主要应用于锻压机床、等领域。如果您需要购买或者了解更多关于SKFFBSA 208/ QFC的信息， 欢迎拨打订购热线：022-27921004
