亚洲欧美激情一区二区 SKFFBSA 210 A/ QFC参数

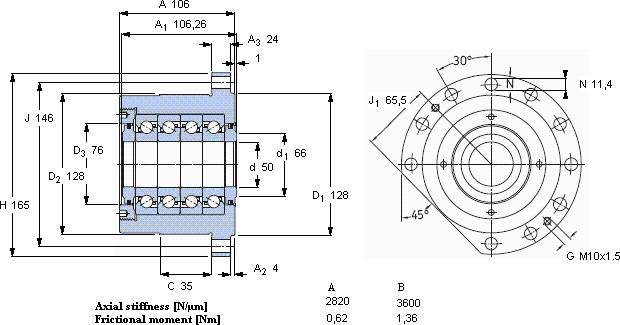

| 角接触推力球轴承 for screw drives, cartridge units with flanged housing | |||||||||||
| 主要数据尺寸 | 基本负荷额定值 | 疲劳负荷限值 | 可达到的速度 | 体积 | 型号 | ||||||
| 动态 | 静态 | 预压 | SKF | SNFA | |||||||
| A | B | ||||||||||
| d | D2 | A | C | C0 | Pu | ||||||
| mm | kN | kN | r/min | kg | - | ||||||
 | |||||||||||
| 50 | 128 | 106 | 75,795 | 292 | 10,8 | 3000 | 1500 | 9,3 | FBSA 210 A/ QFC | BSQU 250/1 TFT | |
SKFAngular contact thrust ball bearings for screw drivesFBSA 210 A/ QFC属于超高精密轴承，它是角接触推力球轴承 for screw drives, cartridge units with flanged housing的Angular contact thrust ball bearings for screw drives，内径：50，外径：128，厚度106，SKFFBSA 210 A/ QFC主要应用于工程机械、等领域。如果您需要购买或者了解更多关于SKFFBSA 210 A/ QFC的信息， 欢迎拨打订购热线：022-27921004
- SKFFBSA 210 A/ QFC近似型号
- SKF HM 218248/W/2A/210/2A/Q 尺寸：90mm × 147 × 40 类型：圆锥滚子轴承 备注：单列
- SKF FBSA 210/ QFC 尺寸：50mm × 124 × 106 类型：Angular contact thrust ball bearings for screw drives 备注：角接触推力球轴承 for screw drives, cartridge units with flanged housing
- SKF 52210 尺寸：40mm × 78 × 39 类型：推力球轴承 备注：双向
- SKF 3210 A-2ZTN9/MT33 * 尺寸：50mm × 90 × 30.2 类型：角接触球轴承 备注：双列
- SKF YAR 210-115-2F/AH 尺寸：49.212mm × 90 × 51.6 类型：Y-轴承 备注：带平头螺钉锁定的
- SKF 7210 BECBY 尺寸：50mm × 90 × 20 类型：角接触球轴承 备注：单列
- SKF NU 210 ECKJ * 尺寸：50mm × 90 × 20 类型：圆柱滚子轴承 备注：单列
- SKF SNL 210 尺寸：50mm × 205 × 60 类型：SNL立式轴承座系列之2,3,5,6 备注：SNL，用于紧定套上的轴承，带油封，标准密封
- SKF NU 210 ECKP * 尺寸：50mm × 90 × 20 类型：圆柱滚子轴承 备注：单列
- SKF 4210 ATN9 尺寸：50mm × 90 × 23 类型：深沟球轴承 备注：双列
- SKFFBSA 210 A/ QFC相关型号
- SKFFBSA 210/ DB 尺寸：50mm × 124 × 66 类型：Angular contact thrust ball bearings for screw drives 备注：角接触推力球轴承 for screw drives, cartridge units with flanged housing
- SKFFBSA 209/ QFC 尺寸：45mm × 124 × 106 类型：Angular contact thrust ball bearings for screw drives 备注：角接触推力球轴承 for screw drives, cartridge units with flanged housing
- SKFFBSA 205/ DB 尺寸：25mm × 80 × 52 类型：Angular contact thrust ball bearings for screw drives 备注：角接触推力球轴承 for screw drives, cartridge units with flanged housing
- SKFFBSA 208/ QFC 尺寸：40mm × 124 × 106 类型：Angular contact thrust ball bearings for screw drives 备注：角接触推力球轴承 for screw drives, cartridge units with flanged housing
- SKFFBSA 208 A/ QFC 尺寸：40mm × 128 × 106 类型：Angular contact thrust ball bearings for screw drives 备注：角接触推力球轴承 for screw drives, cartridge units with flanged housing
- SKFFBSA 206/ QBC 尺寸：30mm × 80 × 84 类型：Angular contact thrust ball bearings for screw drives 备注：角接触推力球轴承 for screw drives, cartridge units with flanged housing
- SKFFBSA 210/ QFC 尺寸：50mm × 124 × 106 类型：Angular contact thrust ball bearings for screw drives 备注：角接触推力球轴承 for screw drives, cartridge units with flanged housing
- SKFFBSA 206/ DB 尺寸：30mm × 80 × 52 类型：Angular contact thrust ball bearings for screw drives 备注：角接触推力球轴承 for screw drives, cartridge units with flanged housing
- SKFFBSA 204/ QBC 尺寸：20mm × 60 × 77 类型：Angular contact thrust ball bearings for screw drives 备注：角接触推力球轴承 for screw drives, cartridge units with flanged housing
- SKFFBSA 210 A/ QBC 尺寸：50mm × 128 × 106 类型：Angular contact thrust ball bearings for screw drives 备注：角接触推力球轴承 for screw drives, cartridge units with flanged housing
- SKFFBSA 210 A/ QFC推荐型号
- NTN 6013-2Z 尺寸：65mm × 100 × 18 类型：
- SKF 61801-2RZ 尺寸：12mm × 21 × 5 类型：
- BARDEN 7240AC 尺寸：200mm × 360 × 58 类型：
- FAFNIR 7321B 尺寸：105mm × 225 × 49 类型：
- BARDEN 71913C/DB 尺寸：65mm × 90 × 26 类型：
- NTN 7212AC/DF 尺寸：60mm × 110 × 44 类型：
- MRC 7236B/DT 尺寸：180mm × 320 × 110 类型：
- NTN NU1048 尺寸：240mm × 360 × 56 类型：
- NTN NU2330E 尺寸：150mm × 320 × 108 类型：
- FYH UCFLU328 尺寸：140mm × 145 × 400 类型：
