亚洲欧美激情一区二区 SKFFBSA 208/ DF参数
| 角接触推力球轴承 for screw drives, cartridge units with flanged housing | |||||||||||
| 主要数据尺寸 | 基本负荷额定值 | 疲劳负荷限值 | 可达到的速度 | 体积 | 型号 | ||||||
| 动态 | 静态 | 预压 | SKF | SNFA | |||||||
| A | B | ||||||||||
| d | D2 | A | C | C0 | Pu | ||||||
| mm | kN | kN | r/min | kg | - | ||||||
 | |||||||||||

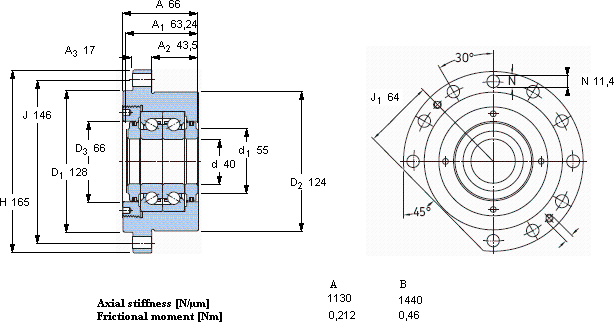

| 40 | 124 | 66 | 42,5 | 112 | 4,15 | 5040 | 2520 | 6,1 | FBSA 208/ DF | BSDU 240 FF | |
SKFAngular contact thrust ball bearings for screw drivesFBSA 208/ DF属于超高精密轴承，它是角接触推力球轴承 for screw drives, cartridge units with flanged housing的Angular contact thrust ball bearings for screw drives，内径：40，外径：124，厚度66，SKFFBSA 208/ DF主要应用于机械设备、等领域。如果您需要购买或者了解更多关于SKFFBSA 208/ DF的信息， 欢迎拨打订购热线：022-27921004
- SKFFBSA 208/ DF近似型号
- SKF 2 x 7208 BEGBY 尺寸：40mm × 80 × 36 类型：角接触球轴承 备注：单列，用于配对安装
- SKF PDNB 208 尺寸：32mm × 434 × 116 类型：双轴承装置 备注：PDNB单元
- SKF YAR 208-108-2FW/VA228 尺寸：38.1mm × 80 × 49.2 类型：工程产品 备注：Y-轴承, 用于高温
- SKF 208 NR 尺寸：40mm × 80 × 18 类型：深沟球轴承 备注：单列，带装球缺口和止动环槽
- SKF 5208 E 尺寸：40mm × 80 × 30.2 类型：角接触球轴承 备注：双列
- SKF YET 208 CW 尺寸：40mm × 80 × 21 类型：Y-轴承 备注：带偏心锁定环的
- SKF PWM 10512080 尺寸：105mm × 120 × 80 类型：FW轴套 备注：FW 轴套
- SKF 6208/HR22T2 尺寸：40mm × 80 × 18 类型：工程产品 备注：聚合物球轴承,单列球轴承
- SKF 7208 BEGAP * 尺寸：40mm × 80 × 18 类型：角接触球轴承 备注：单列
- SKF GEZ 208 TXE-2LS 尺寸：63.5mm × 100.013 × 55.55 类型：免维护的径向球面滑动轴承 备注：免维护径向球面滑动轴承
- SKFFBSA 208/ DF相关型号
- SKFFBSA 210 A/ QFC 尺寸：50mm × 128 × 106 类型：Angular contact thrust ball bearings for screw drives 备注：角接触推力球轴承 for screw drives, cartridge units with flanged housing
- SKFFBSA 208/ DF 尺寸：40mm × 124 × 66 类型：Angular contact thrust ball bearings for screw drives 备注：角接触推力球轴承 for screw drives, cartridge units with flanged housing
- SKFFBSA 208 A/ QBC 尺寸：40mm × 128 × 106 类型：Angular contact thrust ball bearings for screw drives 备注：角接触推力球轴承 for screw drives, cartridge units with flanged housing
- SKFFBSA 204/ DB 尺寸：20mm × 60 × 47 类型：Angular contact thrust ball bearings for screw drives 备注：角接触推力球轴承 for screw drives, cartridge units with flanged housing
- SKFFBSA 206/ DF 尺寸：30mm × 80 × 52 类型：Angular contact thrust ball bearings for screw drives 备注：角接触推力球轴承 for screw drives, cartridge units with flanged housing
- SKFFBSA 208 A/ QFC 尺寸：40mm × 128 × 106 类型：Angular contact thrust ball bearings for screw drives 备注：角接触推力球轴承 for screw drives, cartridge units with flanged housing
- SKFFBSA 206/ QBC 尺寸：30mm × 80 × 84 类型：Angular contact thrust ball bearings for screw drives 备注：角接触推力球轴承 for screw drives, cartridge units with flanged housing
- SKFFBSA 212 A/ QBC 尺寸：60mm × 145 × 114 类型：Angular contact thrust ball bearings for screw drives 备注：角接触推力球轴承 for screw drives, cartridge units with flanged housing
- SKFFBSA 206 A/ QFC 尺寸：30mm × 88 × 86 类型：Angular contact thrust ball bearings for screw drives 备注：角接触推力球轴承 for screw drives, cartridge units with flanged housing
- SKFFBSA 206/ DB 尺寸：30mm × 80 × 52 类型：Angular contact thrust ball bearings for screw drives 备注：角接触推力球轴承 for screw drives, cartridge units with flanged housing
